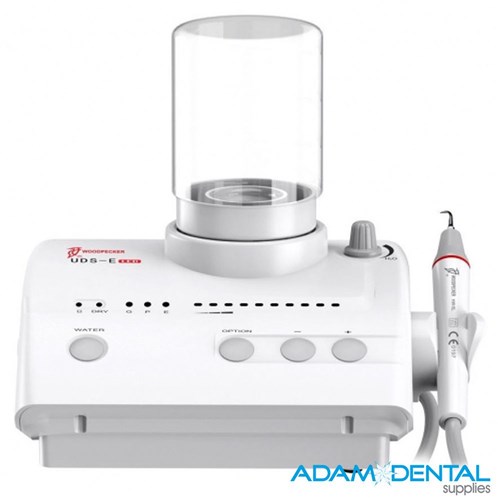

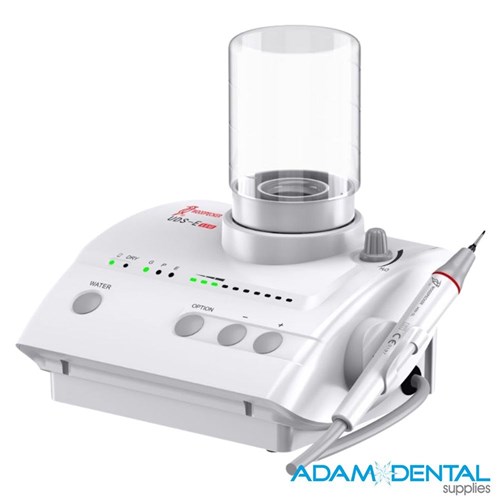

Woodpecker UDS-E LED Ultrasonic Scaler EMS Compatible

Features:

• UDS-E LED scaler has scaling, perio, endo and auto-water supply functions
• With auto-water supply function, easier operation.
• The inner water pipe is made from antiseptic material, clinical fluids, such as Hydrogen peroxide, chlorhexidine and sodium Hypochlorite, etc, can be used perfectly under the mode of auto-water supply system so that the performance of perio and endo is improved dramatically.
• The handpiece is detachable and can be autoclaved to the temperature of 135℃ and the pressure of 0.22MPa.
• Automatic frequency tracking ensures that the machine always works on the best frequency and performs more steadily.
• Controlled by PC, easy operation and more efficient for scaling.
• The scaler is composed of electro circuit, waterway and ultrasonic transducer.
• UDS-E LED is used for the dental calculus elimination and root canal treatment.

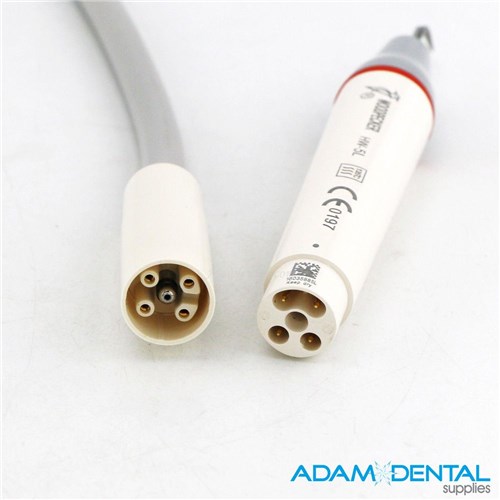

• Optical handpiece, more convenient for clinical operation.

Specifications:

• Power source input: 220 - 240V, 50Hz/60Hz, 150mA
• Main unit input: 24V - 1.3A
• Output primary tip vibration excursion: ≤100um
• Output half-excursion force: ＜2N
• Output tip vibration frequency: 28kHz ± 3kHz
• Output power: 3W to 20W
• Main unit fuse: T 1.6AL 250V
• Power source fuse: T0.5AL 250V
• Water pressure: 0.1bar to 5bar (0.01MPa to 0.5MPa)
• Weight of main unit: 1.17kg
• Weight of power source: 1.2kg
• Dimension: 234mm x 193mm x 109mm
• Operating mode: Continuous operation
• Type of protection against electric shock: Class II
• Degree of protection against electric shock: Type BF applied part
• Applied part of the equipment: handpiece and tip
• Degree of protection against harmful ingress of water: Ordinary equipment (IPX0), Protection degree against water (used on the foot switch): IPX1

Contents:

• 1 x UDS-A ultrasonic scaler
• 1 x Detachable handpiece (compatible with EMS)
• 1 x Foot pedal
• 1x Power wire
• 1x Torque wrench
• 1x Operation manual
• 1x Original box
• Tips:G1*1,G4*1,G5*1,G6*1,P1*1,P3*1,P4D*1
